1.Name:SOB Series Hydraulic Cylinder
2.Intriduction:
SOB series hydro-cylinder is round hydraulic cylinder with big bore for large Machinery and appliance, give the derive cylinder of double rod type and stroke adjustable type, varies of installments are optional to meet different requirement, also can be customized. Widely used in hydro-power engineering projects, metallurgical industry, construction industry, aviation and cosmonautical industry, cranes, textile & chemical industry, plastic injection mounding machines, elevators, ship-lifts, offshore well-drilling platforms, etc.
3.Features:
*Self-lubricating bearing, so shaft is no more need lubrication
*Add adjustable stroke on the end of cylinder,so that cylinder can change the position smoothly
(Please inform in advance when order
* varies of accessories are optional to meet different requirement
*Adopt high-temperature resistant seal, so that hydraulic cylinder can be work at 180°C
(Please inform in advance when order )
* Put a adjustable screw on the end of shaft, that cylinder can be adjustable during stroke
(Please inform in advance when order )
* On the base of standard cylinder can produce varies of non-standard products to meet different requirement.
4.Specification:
| Hydraulic cylinder bore | 125 | 160 | 180 | 200 | 220 | 250 | 280 | 300 |
| Operating pressure range | 10 - 210 kgf/cm2 |
| Operating temperature range | -30 - 100 kgf/cm2 |
| Operating speed range | 8 - 500(mm/mec) |
| Operating media | Hydraulic oil |

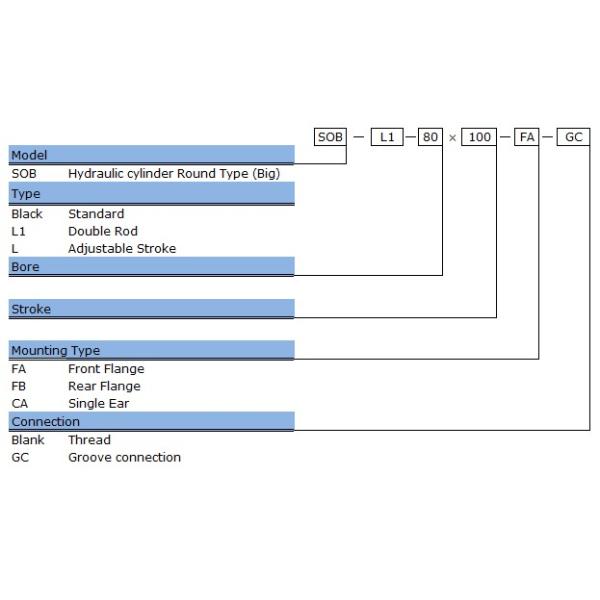

5.Model Code:
