Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

Product Categories
Sichuan COQ Intelligent Equipment Co., Ltd.
Contact Now

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

  • 1
  • 2
  • 3

Brand Name : COQ

Model Number : YCY14-1B

Certification : ISO 9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 3000/Month

Delivery Time : Within 10 days

Name : YCY14-1B Piston Pump

Structure : Axial Piston Pump

Standard or nonstandard : Standard

Material : Cast Iron

Color : Customer's Request

Warranty : 1 Year

Contact Now

1.Name:YCY14-1B Piston Pump

2.Introduction:

YCY14-1B Piston Pump is the use of the oil pan with oil, cylinder rotating axial piston pump. Since the variables between the shoe and the head, using a hydrostatic equilibrium structure between the oil pan and the cylinder block, as compared with other types of pump, it has a simple structure, small size, high efficiency, long life, light weight, self-priming ability and other advantages. It is suitable for machine tools, forging, metallurgy, engineering, mining and other machinery, and other hydraulic transmission system. The pump just want to change the motor oil pan can also be made using a hydraulic motor.

3.Specification:

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

Type
Norminal pressure Mpa
Nominal displacement cc/rev
Theoretic flow
Max drive power KW 1000rpm
Max theoretic torque
1000rpm
1500rpm
25
MCY14-1B
31.5
25
2.5
3.75
1.43
17.5
10
MCY14-1B
SCY14-1B
YCY14-1B
31.5
10
10
15
5.7
54.6
25
MCY14-1B
SCY14-1B
YCY14-1B
31.5
25
25
37.5
14.1
134.9
40
MCY14-1B
SCY14-1B
31.5
40
40
60
22.6
201.5

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

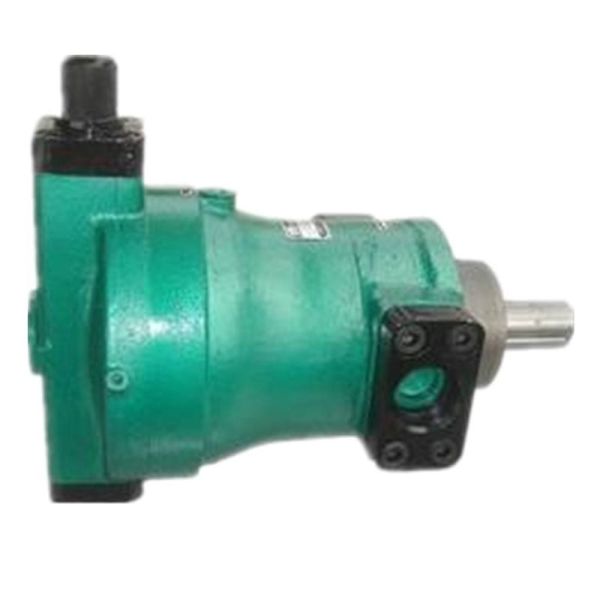

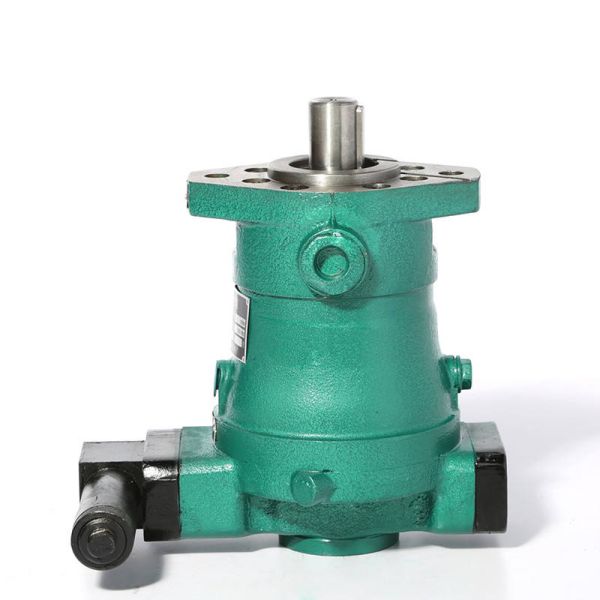

4.Pictures:

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump

Cast Iron Hydraulic Piston Pump YCY14-1B Axial Piston Pump


Product Tags:

Hydraulic Piston Pump YCY14-1B



YCY14-1B Axial Piston Pump



Cast Iron Hydraulic Axial Piston Pump
