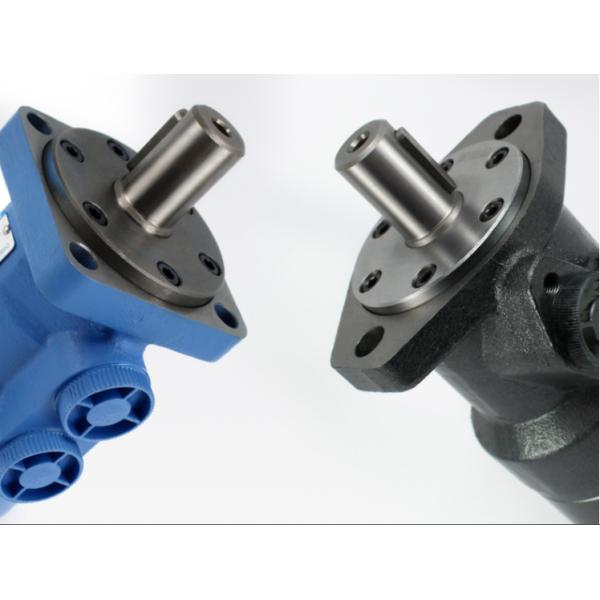

1.Name:BMR/BMRS Series Hydraulic Motor
2.Introduce:
BMR/BMRS series motor adapt the advanced Geroler gear set design with shaft distribution flow,which can automatically compensate in operating with high pressure, provide reliable and smoothoperation, high efficiency and long life.
3.Characteristic features:
(1)Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up.provide smooth, reliable operation and high efficiency
(2)Shaft seal can bear high pressure of back and the motor can be used in parallel or in series,
(3)Special design in the driver-linker and prolong operating life
(4)Special design for distribution system can meet the requirement of low noise of unit
(5)Compact volume and easy installation
4.Main Specification:
(1)Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft
| |
| | BMR
BMRS
36 | BMR
BMRS
50 | BMR
BMRS
8o | BMR
BMRS
100 | BMR
MRS
125 | BMR
BMRS
160 | BMR
BMRS
200 | BMR
BMRS
250 | BMR
BMRS
315 | BMR
BMRS
375 |
| Geometric displacement(cm*rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253,3 | 317.5 | 381.4 |
| Max.speed(rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 60o | 475 | 385 | 30o | 240 | 190 |
| Max. torque(N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 65o | 68o |
| Max.output(kw) | cont. | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10.0 | 7.0 | 6.0 | 5.0 |
| int. | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 9.5 | 9.0 | 8.0 |
Max.pressure
drop (MPa) | cont. | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | | |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 2o | 17.5 | 15 | 13 | 10 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 |
| Max. flow(Lmin) | cont. | 40 | 50 | 6o | 6o | 60 | 6o | 6o | 6o | 6o | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 |
*Continuous pressure:Max.value of operating motor continuously
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute
*Peak pressure:Max.value of operating motor in 0.6 second per minute
(2)Technical data for BMR with 31.75 and 32 shaft
| |
| | BMR
BMRS
36 | BMR
BMRS
50 | BMR
BMRS
80 | BMR
BMRS
100 | BMR
BMRS
125 | BMR
BMRS
160 | BMR
BMRS
200 | BMR
BMRS
250 | BMR
BMRS
315 | BMR
BMRS
375 |
| Geometric displacement (cmlrev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381,4 |
| Max.speed(rpm) | cont. | 1250 | 960 | 750 | 60o | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 60o | 475 | 385 | 300 | 240 | 190 |
| Max. torque(N-m) | cont. | 72 | 100 | 195 | 240 | 300 | 38o | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 69o | 69o |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 |
| Max.output(kW) | cont. | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 11.0 | 10.0 | 9.0 | 7.5 |
| int. | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 12.0 | 10.0 | 9.o |
Max.pressure
drop (MPa) | cont. | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 |
| Max.flow(Lumin) | cont. | 45 | 50 | 60 | 60 | 6o | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Weight(kg) | | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 |
*Continuous pressure:Max.value of operating motor continuously.
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute
*Peak pressure:Max.value of operating motor in 0.6 second per minute.
